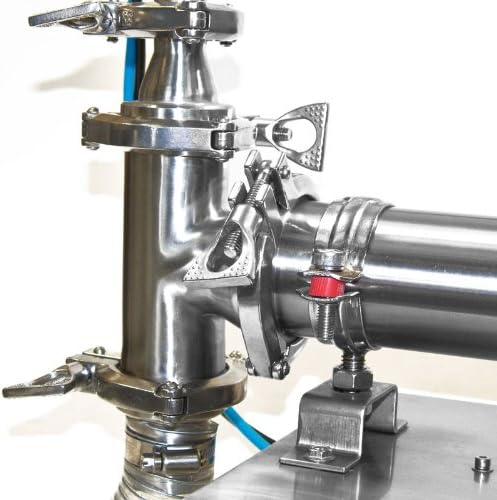

JORESTECH Low Viscosity Piston Filler (500 ml)

Piston Fillers measure and dispense free flowing products - such as thin and/or moderately dense liquids - onto a container. Each machine is equipped with one or more volumetric pistons. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or hopper and taken into the product cylinder. The down stroke commences as soon as the product cylinder has reached its predetermined fill level. The piston pushes the product out of the cylinder and into the container.Our Volumetric Piston Fillers are used by industries in the Food & Beverage, Cosmetics, Personal Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.Features: Filling Range: 1.70 - 17 oz. (50 -500 ml) Approximate Speed: 8 - 14 pcs/min(depending on operator speed, product density, draw length, a fill speed, among others) All Parts in Contact with Product are Food Grade (SS 316) Fluoropolymer elastomer O-ring System Piston Feed Speed Adjustment Extremely Accurate (+/- 1%) Sanitary Stainless Steel Quick Disconnect Fittings Control Panel: Master Start/Stop Cycle Reset Button Semi Auto/Continuous Operation Selector Switch Air Pressure Gauge Air Intake Pressure Adjustment Piston Volume Adjust with Numeric Display Other Specifications: Includes Electro-mechanic Industrial Duty Pedal Voltage: 110v / 50-60 Hz / 1Ph Flammable or explosive products should not be dispensed with this unit Machine Size: 43" x 18" x 22" Boxed Machine Size: 40 inches (1016mm) x 48 inches (1219mm) x 25 inches (635mm) Boxed Machine Weight: 107 lbs (48.6 kg)

• Adjustable Volumetric Piston System with Numeric Reference Display
• Suitable to fill low to mid density liquids (0 - 3,000 cp)
• Electro-pneumatic operation
• Stainless Steel Construction. Includes Parts kit
• Extremely Easy to Clean and Maintain.
